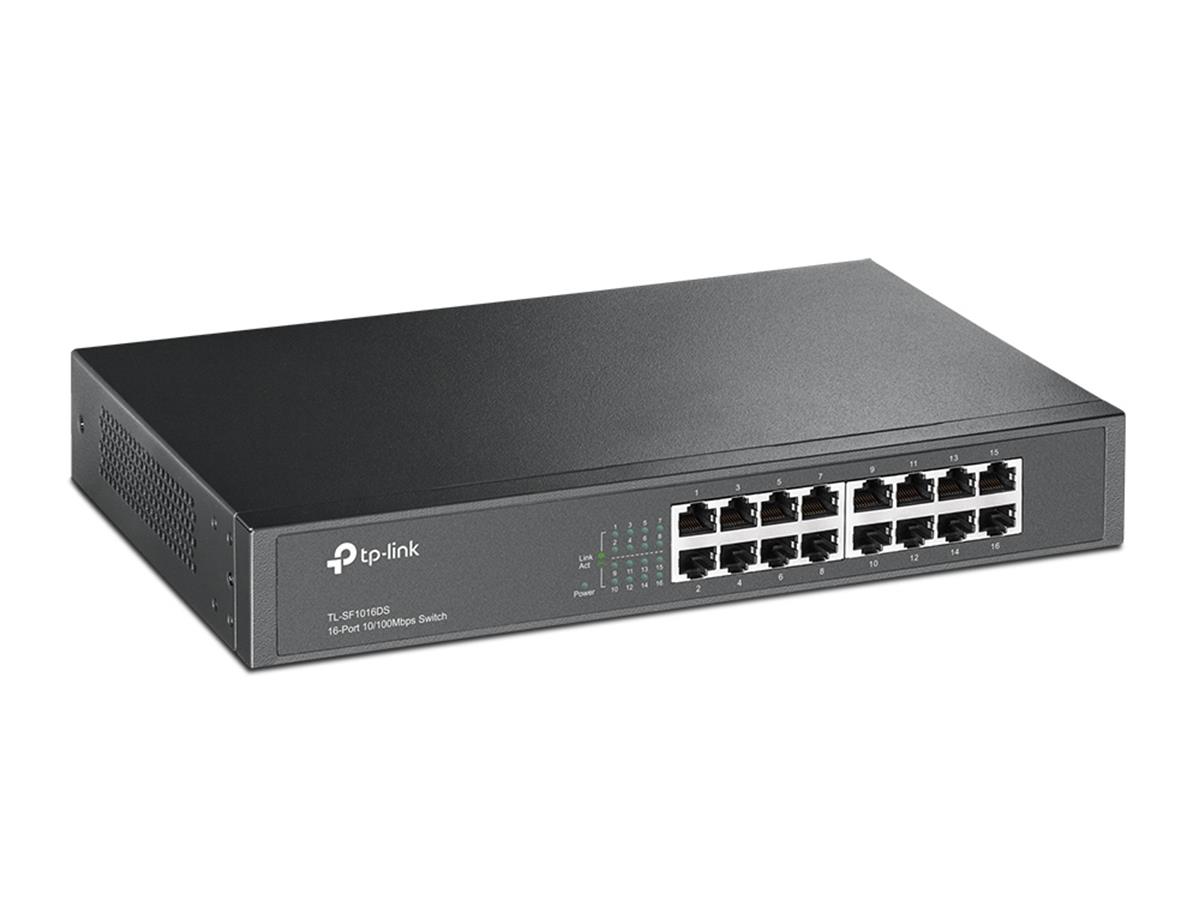

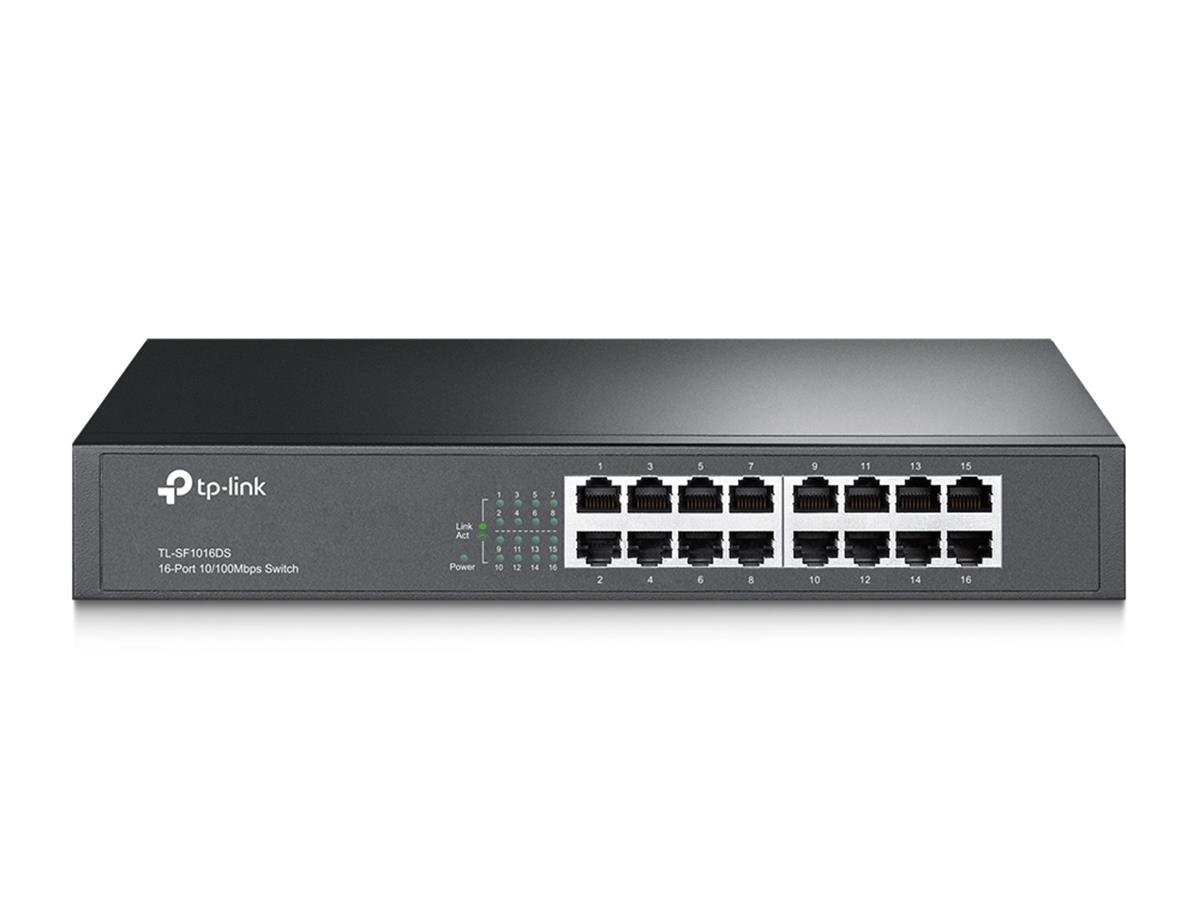

Switch 16 ports RJ45 10/100 tp-link

TP-LINK
(Code: FTL-SF1016DS)

Dispo en stock


Compte PRO : Inscription | Connexion

DESCRIPTIF

Switch 16 ports RJ45 10/100 Mbps
Fonctions auto-apprentissage d'adresse MAC et auto MDI/MDIX
Boîtier en acier rackable standard 13 pouces.
Technologie innovante et économe en énergie permettant d'économiser jusqu'à 70% d'énergie

CARACTÉRISTIQUES MATÉRIELLES

Standards et Protocoles : IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface : 16 Ports RJ45 10 / 100Mbps (négociation automatique / Auto MDI / MDIX)

Interface réseau :
- 10BASE-T: câble UTP catégorie 3, 4, 5 (maximum 100 m)
- 100BASE-TX: câble UTP catégorie 5, 5e ou supérieur (maximum 100m)

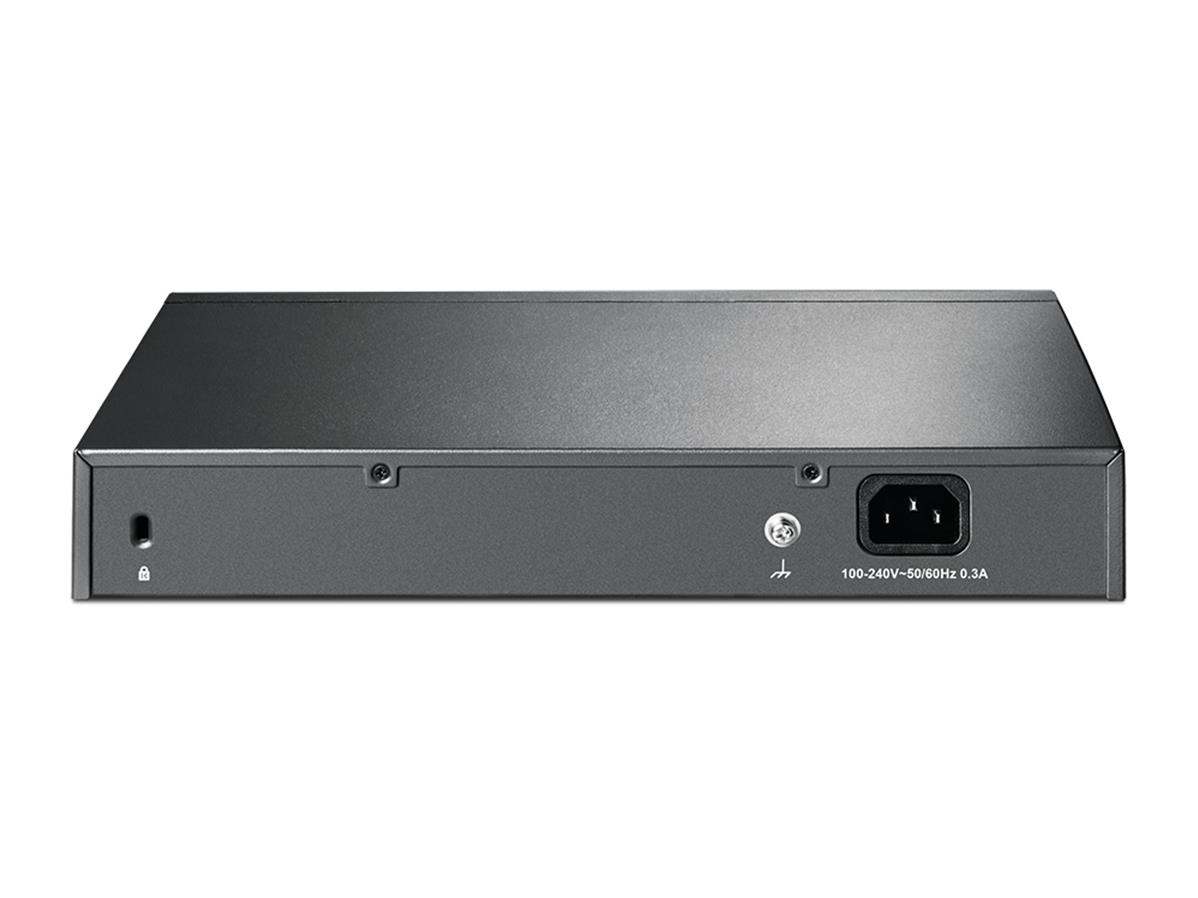

Alimentation : 100-240VAC, 50/60Hz
Consommation maximum : 2.23W (220V/50Hz)
Dimensions (LxPxH) : 294×180×44 mm

PERFORMANCES

Capacité de commutation : 3.2Gbps
Taux de transfert de paquets : 2.38 Mpps
Tableau d'adresses MAC : 8K
Mémoire tampon : 2Mb
Technologie verte : technologie innovante permettant d'économiser jusqu'à 75% d'énergie
Méthode de transfert : Store-a
